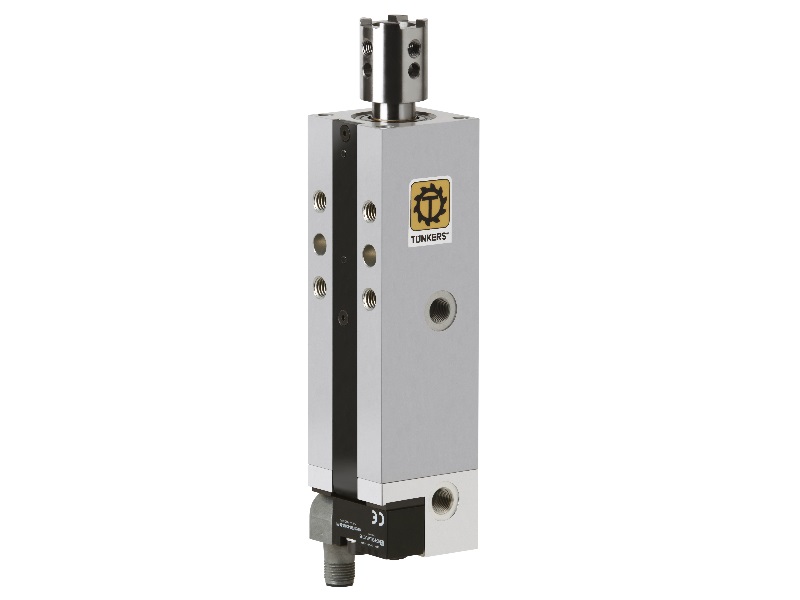

Retractable Locating Pin SZK 30

Positioning – Locating pins

Retract cylinder with mounting hole on pistonrod for centering pins, Compact housing of highstrength aluminium material, Drive via round cylinder Ø 30 for thrust and tensile forces of up to approx. 350/250 N, Push rod secured against twisting in bronze bushing, Integrated inductive sensors, Combined stroke 20 mm, Intermediate stroke lengths upon request.
