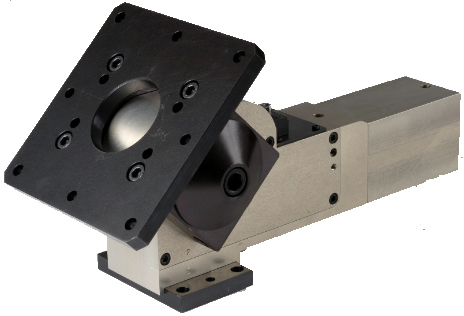

Swivel Console KSW 63

Moving – Special solutions
Compact version with encapsulated structure made of high-strength aluminium material, driven by Ø 63 mm pneumatic cylinder, power transmission via toggle-joint mechanism, locked end position.

Info

–

Categories: ,

Related products

  • Mini Swivel Clamp SCBM 25

    Mini swivel clamp in mono block design. Encapsulated model for welding applications. Sensing system optionally with weld field immune contactors.

  • Linear Cylinder SZKD 63.5 BR3

    Positioning – Linear cylinder
    neumatic cylinder in flat design, size 63, with precision guide for dual push rod, secured against twisting, side mount for adapter, pins, stops, etc., integrated query. Flat housing made of high-strength aluminum material with several mounting surfaces, drive with flat oval cylinder Ø 40 for push and pull forces of 1400 N.

  • Electric Swivel Unit EKS…

    Moving – Pivoting Units

  • V 40 LW

    Compact Clamp, lightweight design, with knee-lever mechanism and over-centre locking. Stepless adjustable opening angle in the range of 10 to 135° (V…). Monoblock housing made from high strengh aluminum material. Integrated pneumatic cylinder Ø 40 mm. Clamp arm with mounting for gripper jaws, contour blocks or clamping screws. Monting hole patterns front and rear. Option: Position sensing for opened and closed position.
