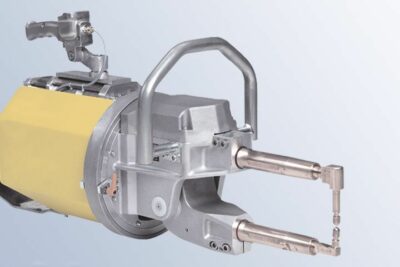

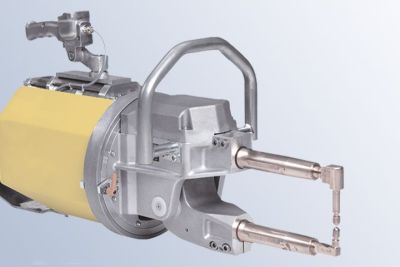

Classic Gun, Svetsstång

Kan konfigureras individuellt: classicGUN

Oavsett vilka svetsjobb du behöver behärska – stål- eller aluminiumsvetsning – med den klassiskaGUN litar du alltid på rätt svetstång. Designad enligt modulprincipen anpassar den sig helt enkelt till dina krav. Och om du någonsin råkar ha mycket speciella krav som inte täcks av de befintliga modulerna, kommer vi inom kortast tid att utveckla en manuell svetstång för dig som är perfekt anpassad till din uppgift.

Enkel hantering och absolut robust

Den ergonomiska och viktoptimerade konstruktionen av classicGUN gör arbetet enkelt för dina anställda. En gedigen design och robust hantverk säkerställer att du kan arbeta med din klassiskaGUN i många år framöver – även när materialen och tekniken utsätts för stora påfrestningar.

Can be individually configured: the classicGUN

Regardless of which welding jobs you need to master – steel or aluminum welding – with the classicGUN you are always relying on the right welding gun. Designed according to the modular principle, it simply adapts to your requirements. And if you ever happen to have very special requirements that are not covered by the existing modules, within the shortest time we will develop a manual welding gun for you that is perfectly matched to your task.

Simple handling and absolutely robust

The ergonomic and weight-optimized construction of the classicGUN makes work for your employees easy. A solid design and robust craftsmanship ensure that you can work with your classicGUN for many years to come – even when the materials and technology is put under heavy strain.

Pamphlet / Broschyr

ClassicGun Pamphlet download

Advantages

Modular system
We configure the classicGUN for you based on various modules so they perfectly match your requirements. The electrode arms made of CuCrZr or aluminum are assembled in accordance with the respective automobile standard. On top of that, we offer various rocker arms for different arm clearances. Get in touch: we’ll be happy to advise you.

Solidity and durability
A robust and ergonomically designed handle, an extremely impact-resistant cladding made of aluminum, the housing made of high-strength aluminum alloy and a massive, low-wear bearing ensure that the classicGUN can be used for a long time with low maintenance. Furthermore, before delivery we promise to check each and every component for its durability.

Modern technology and precise execution
The choice is yours: Choose the alternating current or the modern medium-frequency technique. The smooth-running rotating assembly with high precision guide and locking device makes it easy for your employees to perform their work with great accuracy.

Areas of Application

Typical applications

Whether you want to equip complete production lines with manual guns or the focus is on smaller runs where automation is just not worth it – the classicGUN convinces in both areas. Typical fields of application are:

  • Vehicle development / pilot shops
  • Prototype construction / pilot series centers
  • Start-up factories
  • Rework stations
  • CKD production

Technical Data

Gun size LHN 10-46 CHN 10-41
Arm center distance (mm) 150-450 100-150
Fittings mount (mm) 32-48 34-48
Fittings arm (mm) 35-60 35-60
Weight (kg) 50-67 48-64



Double-stroke cylinder X-guns C-guns
Z-force 10 bar (in daN) 1180-3900 750-1060
Prestroke (in mm) 25-40 50-110
Working stroke (in mm) 20 30-50
Overall stroke (in mm) 45-60 80-145



Transformers ISO-transformer MF-transformer
Nominal output (in kVA) 36-103 75-260
Secondary voltage (in V) 6.3-13.5 8.3-13.0
Weight (in kg) 22.5-51.0 11.8-20.0
