K 16.1-25.1 Z Mini Clamp

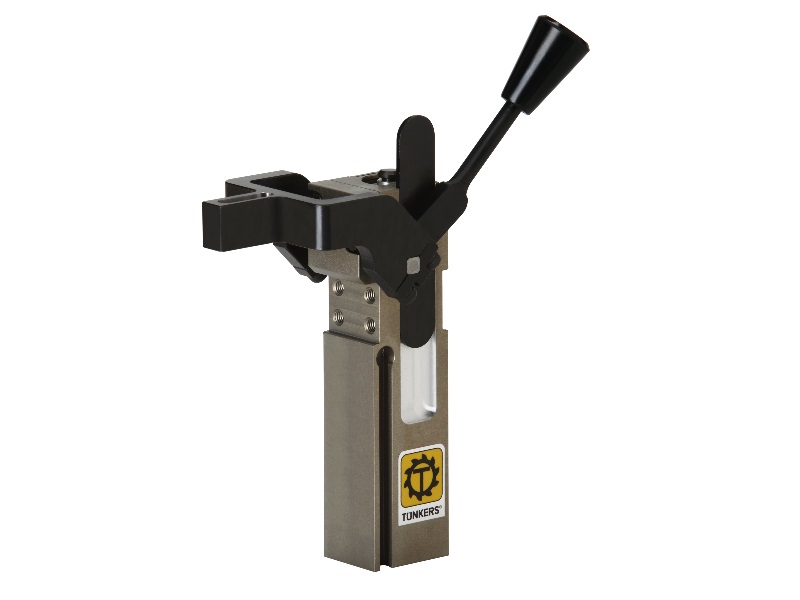

Compact Clamp with toggle-joint mechanism, Over-centre lock, Fully encapsulated mechanics, Mono-block-Housing of high-strength aluminium material, Integrated pneumatic cylinder ø 16-25 mm, Forked Clamping arm with adaptor for gripper jaws, contour blocks or locking screws, Hole pattern for mounting purposes at the front and back, Models standard, round, threaded journal, cartridge variant type. Option: Magnetic switch for opened and closed position. – Hand lever



Compact Clamp in special design with manual feed. Manual closing and locking, pneumatic opening and closing. Attention! A 5/3 way valve is required, central position de-aerated.

Accessories

Clamp arms A10, A11, A12 for clamps size 25, Z

CAD Data

Catia V5 3D K 16.1 ZL A18 T03

Catia V5 3D K 20.1 ZL A18 T03

Catia V5 3D K 25.1 ZL/ZR A17

Catia V5 3D K 25.1 ZL/ZR A18

Catia V5 3D K 25.1 ZL/ZR A19

Step K 16.1 ZL A18 T03

Step K 20.1 ZL A18 T03

Step K 25.1 ZL/ZR A17

Step K 25.1 ZL/ZR A18

Step K 25.1 ZL/ZR A19

Data Sheet

K 16.1 – 25.1 ZL/ZR with hand lever

Other Specs

PKS 16-25, K/PKS 16.1-25.1, PKG 16-25 air consumption

PKS… .1 / K… .1 Allowable clamp arm weight- load offset

Spare Parts

K 16.1 ZL/ZR

K 25.1 ZL/ZR
