CDK-SG är en kraftfull och pålitlig elektrodformerare, och en garanti för högsta kvalitetskrav under komplexa förhållanden. Vår problemlösare från KYOKUTOH-familjen för svetstänger med svår åtkomst i trånga områden.

Svetstänger som måste göra svetspunkter på delar som är svåra att komma åt, möter ofta utmaningar när de kommer in i skärhållaren utan att kollidera. För att lösa detta problem har CDK-SG en mycket kort väg från ytterkanten till mitten av verktyget. Detta gör att vi kan automatisera även mycket trånga robotceller.

The CDK-SG is a powerful and reliable tip dresser and a warrantor for highest quality requirements under complex conditions of welding shafts. Our problem solver from the KYOKUTOH family for guns with difficult access in narrow areas.

Guns that must make welding spots on parts that are difficult to access often face challenges when entering the cutter holder without colliding. To solve this problem, the CDK-SG has a very short path from the outer edge to the center of the tool. This enables us to automate even very cramped robot cells.

The powerful 1 KW motor of the CDK-SG is convincing with its above-average milling results. Thanks to its robust machine construction and the materials used, a very long service life is guaranteed. It can be used in almost any working position and is ideally suited for any production environment. The integrated spring assembly ensures simultaneous removal during electrode milling. With the control box already integrated originally, the system is simple and PLUG&PLAY ready. An integrated motor protection switch is provided for the prescribed safety.



  • PLUG&PLAY system for simple and fast installation
  • Narrow gearbox for very difficult access to special guns

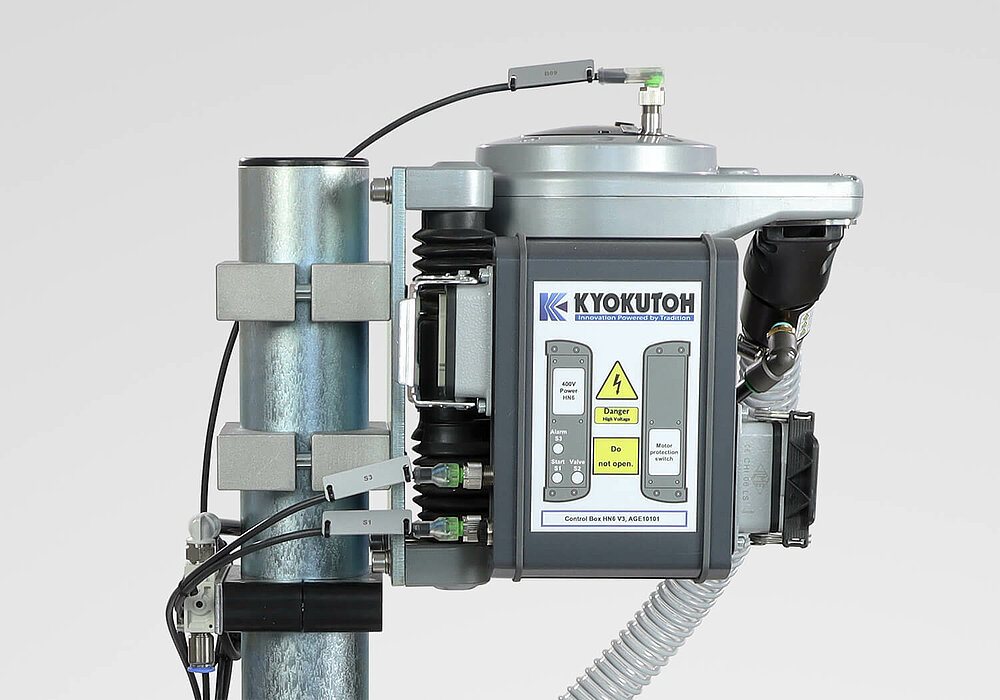

  • Integrated control box
  • Robust design
  • Low-vibration and stable stand
  • Horizontal or vertical alignment

Technical Data


Voltage 400 V
Frequency 50/60 Hz
Current 2.3/2.2 A
Speed 234/280 rpm
Weight 16 kg
