Showing 1–16 of 49 results

APH 40… ALPHA SERIES

Compact clamp equipped alternatively with knee-lever mechanism or curve-drive mechanism. Monoblock housing, totally enclosed, made of aluminum. Integrated mechanics and flat cylinder size 40. Fork shaped clamp arm with mounting for contour pieces. Stepless adjustable opening angle in the range of 15° to 135°. Option: Integrated stop valve for self-holding, Inductive sensing (weld-resistant) for position …

APH 40… ALPHA SERIESRead More
APH 40.5… Alpha Clamp

Compact clamp, alternatively equipped with toggle-joint or power curve-driven mechanism, self-locking. Encapsulated monoblock housing of aluminium material with integrated mechanics and flat cylinder of size 40. Forked clamp arm with standard hole pattern for receiving of contour blocks, opening angle continuously adjustable from 15° to 135°. Options: – Integrated stop valve for self-locking function …

APH 40.5… Alpha ClampRead More
CARBON FIBRE TUBE SYSTEM (TCR)

Tünkers Carbon Fibre Tube System From a technical viewpoint, the force-closed Tünkers Carbon Fibre Tube system makes use of the optimum of inertia of tubes and, at the same time, the special properties of carbon fibres. Right at the beginning of the project phase and without knowledge of the component or gripper weight in qeustions, …

CARBON FIBRE TUBE SYSTEM (TCR)Read More
Double Arm Clamp – K 40 / K 63 AS

Dual-arm clamp

Clamping – Special Clamps

Both(40/63)

Double arm clamps in encapsulated flat design with integrated monitoring in cassette form. Integrated toggle lever mechanism for driving two clamping arms, self-locking. Encapsulated housing in aluminum, flat oval cylinder size 40/63. Two fork-shaped clamping arms with standard hole pattern to accommodate one contour piece each, opening angle max. 2 x 90 °. Option: – Inductive interrogation, weld-proof for position open and closed
Dual accumulating conveyor

Conveying – Dual accumulating conveyor
Eco Clamp Eco…

Clamping – Pneumatic Clamps
EFS Pallet accumulating

Conveying – Conveying Systems
Electric Swivel Unit EKS…

Moving – Pivoting Units
Eurogripper System

Das Eurogreifersystem wurde von dem Automobilarbeitskreis unter Beteiligung der Firmen BMW, VW, Audi, Daimler und Porsche entwickelt. Basis des Eurogreifersystems bildet ein oktogonales Aluminiumprofil mit einer Rasterlochung. Die Firma TÜNKERS ist ein lizenzierter Anbieter der für den Aufbau der Greifersysteme erforderlichen Komponenten. Komponenten und Komplettsysteme nach dem Euro-Standard dürfen ausschließlich bei Projekten der …

Eurogripper SystemRead More
EXPERT-TÜNKERS monorail lift shuttle systems

The EXPERT-TÜNKERS monorail lift shuttle systems were developed on the basis of expansive studies in accordance with the criteria of market requirements.
Flat Cylinder ZF…

Pneumatic cylinder with narrow oval-shaped cross section. Piston rod protected against twisting. Suited anywhere, where conventional round cylinders cannot be used due to restricted space.
GN 32/40 BR2 AS PNEUMATIC GRIPPER

Compact gripper with curve-driven lever-mechanism with two movable gripper arms. Robust housing made of high-strength aluminium material with integrated pneumatic cylinder, gripper arms in steel construction with curved link and adaptor for gripper jaws, multiple mounting options on the housing. Optional: – Integrated closed and opened position sensing – various connection options
GN 32/40 BR2 PNEUMATIC GRIPPER

Compact gripper with curve-driven lever-mechanism with one movable gripper arm. Robust housing made of high-strength aluminium material with integrated pneumatic cylinder, gripper arms in steel construction with curved link and adaptor for gripper jaws, multiple mounting options on the housing. Optional: – Integrated closed and opened position sensing – various connection options

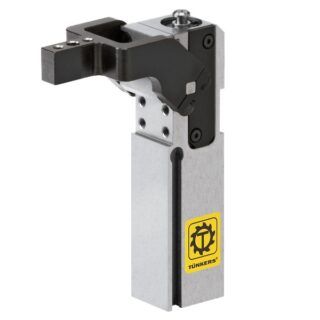

K 16.1-25.1 MINI CLAMP

Compact Clamp with knee-lever mechanism, totally enclosed, size 16-25. Over-center locking, monoblock housing made from high-strength material. Integrated pneumatic cylinder Ø16-25 mm. Clamp arm with mounting for gripper jaws, contour blocks or clamping screws. Mounting hole patterns front and rear. Option: Magnetic switch for opened and closed position.
K 16.1-25.1 Z Mini Clamp

Compact Clamp with toggle-joint mechanism, Over-centre lock, Fully encapsulated mechanics, Mono-block-Housing of high-strength aluminium material, Integrated pneumatic cylinder ø 16-25 mm, Forked Clamping arm with adaptor for gripper jaws, contour blocks or locking screws, Hole pattern for mounting purposes at the front and back, Models standard, round, threaded journal, cartridge variant type. Option: Magnetic switch …

K 16.1-25.1 Z Mini ClampRead More
K32.1 UZ

Pin clamps for centring and clamping operations where access is through a hole, Customised centring mandrel 20-40 mm in diameter, Retracting hook driven via toggle-joint mechanism, Enclosed aluminium housing with hole pattern for mounting right and left, optional: Weld immune inductive sensing of closed and opened position (T12)
