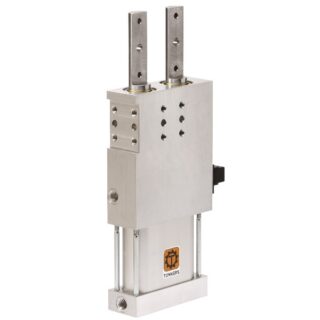

Linear Cylinder SZV.1 40…
Positioning – Linear cylinder
With toggle lock function, Flat housing in mono-block design of high-strength aluminium material, High thrust and tensile forces via toggle-joint transmission of up to 4 kN in the dead-centre position, Driven by integrated pneumatic cylinder Ø 40 mm operating the push rod via toggle-joint mechanism, over center locked, Double-guided push rod in bronze/graphite bushings, Mounting possibilities on all sides and base, Integrated end position sensing in cartridge design, Optional hand applied version for manual operation and pneumatic closing/opening.
