Linear Cylinder SZVD 32/50
Positioning – Linear cylinder

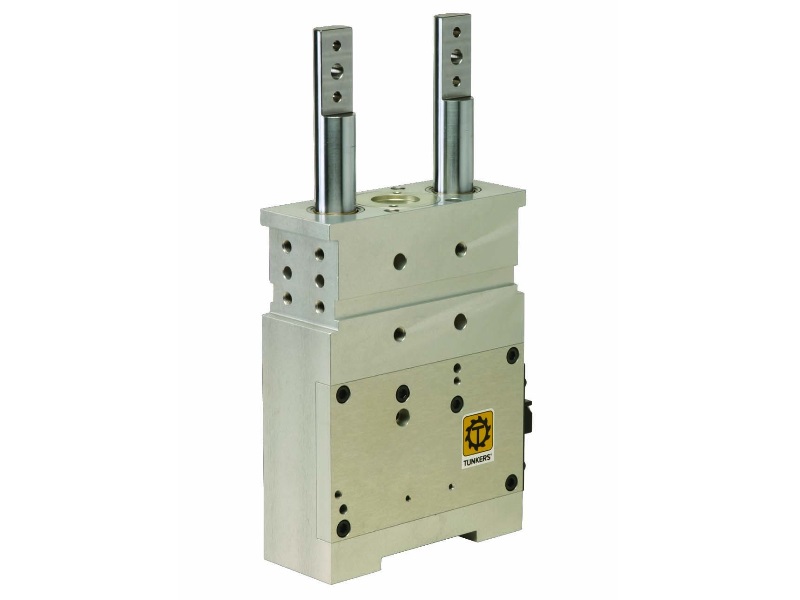

SZVD 32: Linear unit with integrated pneumatic cylinder, which operates two push rods synchronously by means of a toggle lever mechanism, self-locking. Flat housing in monoblock form made of high-strength aluminum material, high push and pull forces due to toggle lever transmission of up to 600 N in the end position. Double-guided push rod in bronze / graphite bushings, fastening options on all sides on the side and bottom. Integrated end position query in cassette design. Option: – Manual feed for manual feeding and pneumatic closing

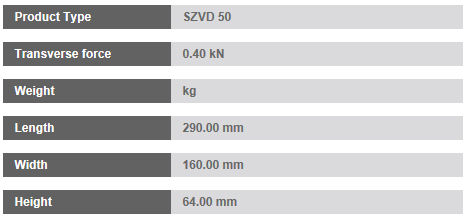

SZVD 50: Linear unit with integrated pneumatic cylinder, which operates two push rods synchronously by means of a toggle lever mechanism, self-locking. Flat housing in monoblock form made of high-strength aluminum material, high push and pull forces due to toggle lever transmission of up to 2.3 kN in the end position. Double-guided push rod in bronze / graphite bushings, fastening options on all sides on the side and bottom. Integrated end position query in cassette design. Option: – Manual feed for manual feeding and pneumatic closing
Double pistonrod version with toggle lock function, Flat housing in mono-block design of high-strength aluminium material, Pneumatic cylinder Ø 50 mm integrated into the housing, which synchronically operates the push rods via toggle-joint mechanism, High thrust and tensile forces of up to 2.3 kN in the dead-centre position due to toggle-joint transmission, Double-guided push rod in bronze / graphite bushings, Mounting possibilities on all sides and base, Integrated end position sensing in cartridge design, Optional hand applied version for manual operation and pneumatic closing.
