EDR – Duorail Shuttle

EDR-| DUBBELSIDIG SKYTTEL

EXPERT-TÜNKERS Tvåsidiga skyttel är en vidareutveckling av Ensidig Skyttel och en annan kompakt transportlösning för den sammanlänkade driften. Den är utformad för att hantera medelstora delar i body in white-produktionen. Systemets vertikala slag tillhandahålls av standard EXPERT-TÜNKERS Rullbanelyft. För den synkroniserade, exakta och smidiga horisontella transporten från station till station använder konstruktionen vanliga elektromekaniska linjära axlar.

EDR | DUORAIL-SHUTTLE

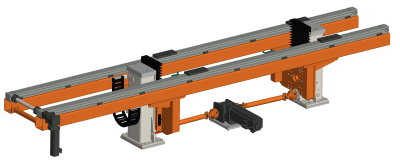

The EXPERT-TÜNKERS Duorail-Shuttle is a further development of the Monorail-Shuttle and another compact conveying solution for the interlinked operation. It is designed to handle medium sized parts in the body-in-white production. The vertical stroke of the system is provided by standard EXPERT-TÜNKERS lift columns. For the synchronized, precise and smooth horizontal transport from station to station, the design utilizes standard electro-mechanical linear axes.

ADVANTAGES OF THE DUORAIL-SHUTTLE-SYSTEM

  • Optimized cycle times
  • High durability, reduced maintenance
  • System based on standardized components
  • Economically favourable solution

ADVANTAGES OF THE VERTICAL DRIVE:


The vertical drive of the duroail-shuttle system is based on EXPERT-TÜNKERS standard lift columns.

  • Durable and proven drive conept via cylindrical cam and cam follower
  • Smooth and jerk-free movement
  • Gentle part pickup at v= 0 m/s
  • Optimized motion-profile according to VDI-Guidance No. 2143
  • Reduced drive power required
  • Precise positive locking in upper and lower cam end position.

ADVANTAGES OF THE HORIZONTAL DRIVE


The horizontal drive of the duroail-shuttle system is based on standard electro-mechanical linear axes.

  • High flexibility due to customizable station length
  • Various transportation speeds due to servo-gearmotor
  • High durability due to appropriate aluminum profile dimensions and integrated linear roller guidance
  • Reduced maintenance due to lifetime lubricated rollers
  • Welding-resistant coverage of transportation belt

REFERENCEN

  • Audi Ingolstadt
  • Audi Changchun (China)
  • Audi San José Chiapa (Mexico)
  • Seat Martorell (Spanien)
  • Volkswagen Taubaté (Brasilien)
  • Volkswagen Anchieta (Brasilien)
