EDX-series

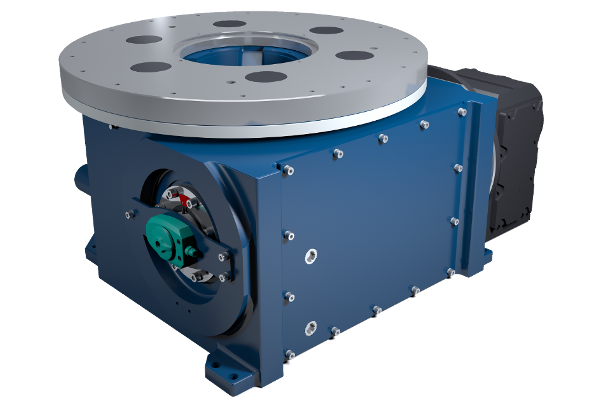

Rotary tables and trunnion drives with fixed steps of the EDX series

  Design and function
  EXPERT-TÜNKERS precision rotary tables convert constant drive movements into indexed output movements.
  Due to the construction of the cylindrical cam profiles in accordance with mathematical laws on curves,
  a smooth and shockless motion sequence is generated. When in operation, the cam effects a stepwise rotation of the table by the defined angular displacement per step.
  A form-closed positioning of the table plate with low-backlash, high-precision fit is achieved in the dwell position, without any additional locking mechanism.
  Laws of motion
  Index drives which must accelerate and decelerate inertial masses from resting positions, are required to produce smooth and shockless motions.
  Here the law of motion suited for the customer application, for instance modified sines, is applied.
  Series features
  Housing
  • Newly dimensioned compact housing, processed according to standards, for improved and easy centring and orientating of rotary tables.
  • Openings are provided in the centre and on the sides for the installation of supply lines.

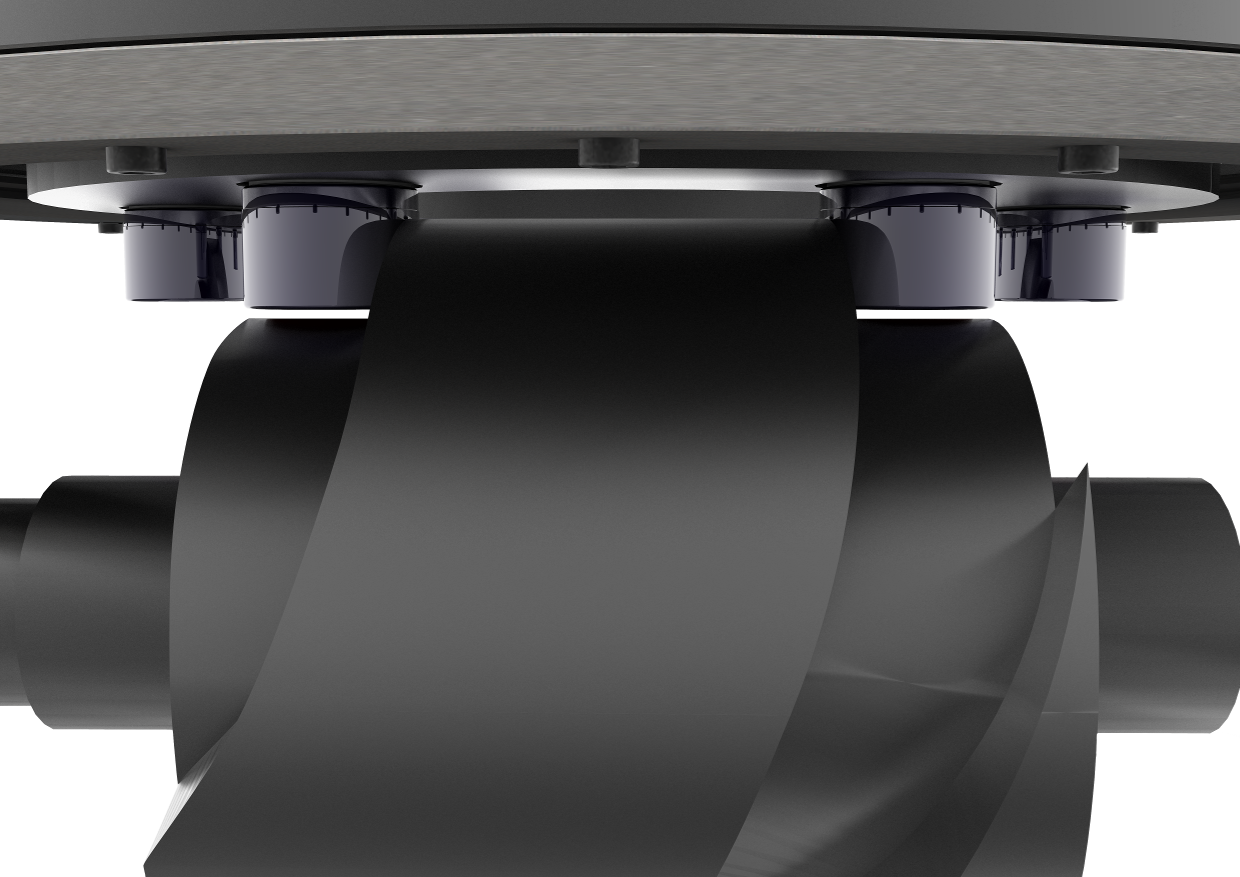

  Cylindrical cam profile
  • Hardened and ground for low-vibration motion and long service life.
  • Inspection, assembly and disassembly via opening on the side of the housing.
  Cam followers
  • Hardened and ground.
  • Inspection, assembly and disassembly are directly possible from the top of the table plate (openings in the tooling plate are to be accordingly provided for)
  • Cover plates for protection of the cam followers.
  Table plate
  • Newly dimensioned table plate with enhanced performance data.
  • Due to the arrangement of the table plate and ball bearing,
  no supplementary covers are needed to protect the bearing (contact with spatter, water, dust can be avoided under normal   environmental conditions).
  • The table plate is prepared to accommodate corresponding centring bushings.
  Ball bearing
  • Quality bearings especially tailored to meet EXPERT-TÜNKERS requirements.
  • Inspection and adjustment possibilities from outside, with loaded tooling plate (no disassembly required).
  Drive
  • The rotary table is driven by an energy-saving three-phase motor.
  • Optional operational modes: One or two speeds, one direction of rotation (right or left), two directions of rotation (reversing).
  Control
  Our new ‘intelligent’ SmartTurn system, is used as a standard control for rotary tables with fixed divisions.
  The new generation of rotary tables is optionally supplied with an inductive switch and the stand-alone Smart-Turn control system,
  which replace the complex mechanical switching devices and fully control the table.

Control - SmartTurn



SmartTurn – Product Presentation

SmartTurn – Operation Manual

SmartTurn – Software

Product Presentation Accessories



Data Sheet

Technical Data


  Technical data (EDX 410 – 500)
                EDX
            410
            465
            500

          Repeatability

        ± 0.01 mm
  auf Rs = 52.5 mm
      ± 0.01 mm
   auf Rs = 75 mm
       ± 0.01 mm
    auf Rs = 100 mm

     Positioning accuracy

       ± 0.02 mm
  auf Rs = 52.5 mm
      ± 0.02 mm
   auf Rs = 75 mm
         ± 0.02 mm
   auf Rs = 100 mm
    max. admissible axial
            load ABA
         7500 N
        10000 N
         15000 N
         max admissible
    overturning moment KMA
         250 Nm
         300 Nm
         1000 Nm
      max. admissible radial
              load RBA
          2500 N
         3500 N
           5000 N
     Mass of the indexing
      table including drive
         ~ 25 Kg
       ~ 50 Kg
         ~ 80 Kg
  Technical data (EDX 610 – 3400)
Typ


     Ø Table plate
           [mm]
   Height
   [mm]
   max. axial load
          [kg]
EDX 610
           360
      250
            1100
EDX 700
           450
      310
            2400
EDX 810
           560
      360
            3200
EDX 960
           710
      450
            4800
EDX 1170
           920
      550
            6400
EDX 1370
          1120
      620
           11000
EDX 1600
          1350
      720
           16000
EDX 1900
          1650
      800
           20000
EDX 2250
          2000
      920
           24000
EDX 2750
          2500
      920
           28000
EDX 3400
          3150
      920
           30000
  Special designs upon request.
  Please contact us with reference to CAD data or if you should have any queries.
