Power Gun, Svetstång

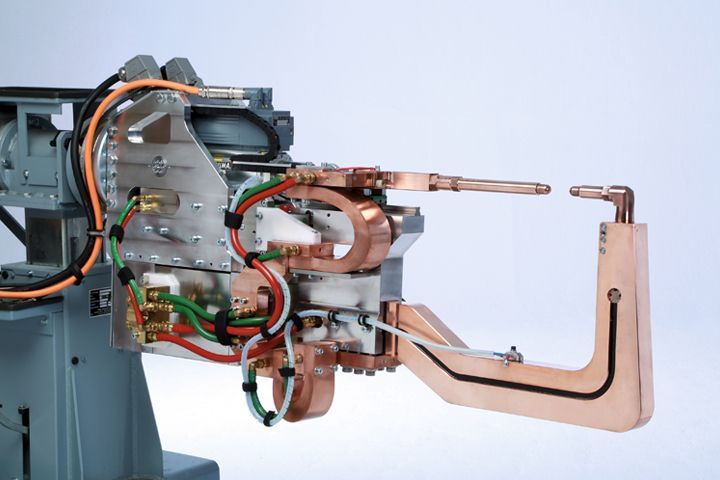

Full kraft för krävande aluminiumsvetsning: powerGUN
Med hänsyn till den nuvarande utvecklingen inom bilindustrin ökar användningen av lättviktsmaterial kontinuerligt. I samband med det ställs ökade krav på motståndssvetsning: För aluminiumsvetsning krävs högre strömmar. Det är precis vad vår innovativa powerGUN-robotsvetstänger uppnår. Utvecklad av våra ingenjörer i två versionsvarianter för olika materialtjocklekar, hjälper den kunder över hela världen med processpålitlig aluminiumpunktsvetsning i högsta kvalité och hastighet.
Kraftfulla funktioner för mer effektivitet och produktivitet
Kärnkomponenterna i vår servomotordrivna powerGUN är högeffekts medelfrekventa svetstransformatorer för upp till 80 kA. De garanterar samtidigt hög svetsström och långa arbetscykler. Ökad kylning säkerställer perfekt värmeavledning och böjningen av armarna på den torsionsfria grundkroppen minimerades. En integrerad kraftmätningssensor övervakar den nödvändiga elektrodkraften och kraftprofilen.
Förresten: Du kan välja mellan att styra powerGUN på den kombinationsstyrenhet som vi utvecklat tillsammans med en känd partner eller – i samband med det innovativa drivsystemet magneticDRIVE – på ett komplett system med en skräddarsydd master-PLC för styrning av alla funktioner och robotgränssnitt.
Full power for demanding aluminum welding: the powerGUN
With consideration of current developments in the automobile industry, the use of lightweight materials is continuously increasing. Associated with that are increased demands put on resistance welding: Because for aluminum welding, higher currents are required. And that is exactly what our innovative powerGUN robot welding gun achieves. Developed by our engineers in two version variants for different material thicknesses, it helps customers around the world with process-reliable aluminum spot welding in the highest perfection and speed.
Powerful features for more efficiency and productivity
The core components of our servomotor-driven powerGUN are high-power medium frequency welding transformers for up to 80 kA. They simultaneously guarantee high welding current and long duty cycles. Increased cooling ensures perfect heat dissipation and the bending of the gun arms on the torsion-free basic gun body was minimized. An integrated force measuring sensor monitors the required electrode force and force profile.
By the way: You can choose between operating the powerGUN on the combination controller we developed together with a renowned partner or – in conjunction with the innovative magneticDRIVE drive system – on a complete system with a customized master PLC for controlling all functions and robot interfaces.
Advantages
High welding current and long duty times
The powerGUN can optionally be equipped with one or two high-power transformers for high welding current and long duty times.
Improved heat dissipation
An optimized water cooling system ensures improved heat dissipation.
Powerful execution
Great features of a strong robot gun: servo-driven drive, force sensor for force control, expanded cross-sections in the secondary area, version without gun compensation
Flexible deployment
The powerGUN can be optionally operated on a conventional welding controller, on the combination controller we developed together with a renowned partner or – in conjunction with the innovative magneticDRIVE drive system – on a complete system with a customized master PLC for controlling all functions and robot interfaces.
Applications
Typical applications
Whenever you need to weld aluminum in the modern multi-material mix environment, the powerGun is convincing, especially in
- the aerospace industry
- automobile production
NIMAK powerGUN is used for production of aluminum automotive body constructions and battery trays
Technical Data
Technical specifications
| Electrode force (in kN): | 0.3-8 kN |
| MF transformer (in kVA): | 130, 260, 400, 500 |
| Duty ratio (in %): | 20 |
| powerGUN I for thin sheets | Up to 6.5 KN/30 kA |
| powerGUN II for thick sheets | Up to 8 KN/80 kA |
Complementary products
Complementary products
Control cabinet for controlling the powerGUN
We will gladly supply you with the control cabinet for the welding control including the related inverter together with your powerGUN. The programming is undertaken as per your requirements so that all functions such as the welding process, feed movement, force generation and compensation function are matched exactly to your demands. Furthermore, the cabinet has a ProfiNet interface to the robot.
