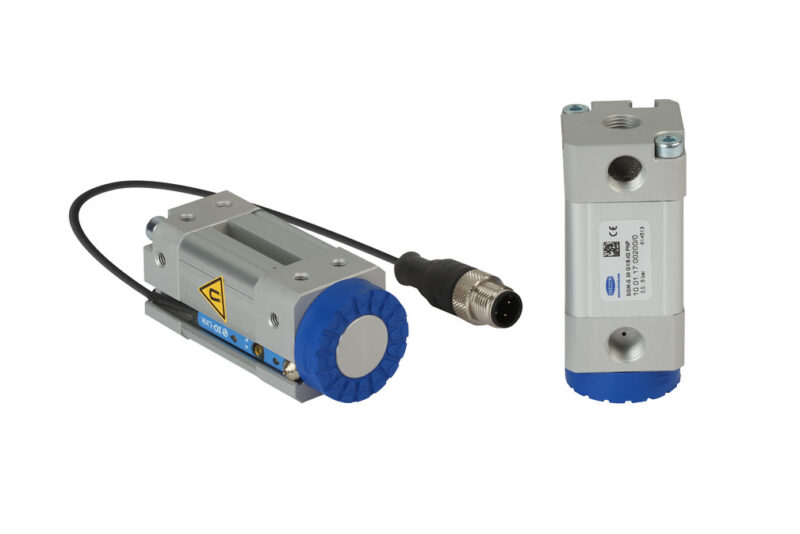

SGM-HD-S 30 G1/8-IG PNP
Magnetic gripper for handling metal sheets with holes
Technical Data
| Holding force max. friction ring | 35 N |
| Remaining force | 0.30 N |
| Pressure range (operating pressure) | 3.5 … 6.0 bar |
| Installation position | Any |
| Control valve | Bistable |
| Operating temperature | 5 … 70 °C |
| Weight | 145 g |
| Product family | SGM |
Spare Parts
Friction ring
REIB-RING SGM 30 PU-55
for: Magnetic gripper
Size: 30
External diameter: 29.5 mm
Internal diameter: 19 mm
Proximity switch
NAEH-SCHA SMAGN-NPN S050
Type: Magn. cylind. sensor-NPN
Voltage: 12-30V DC
Holder system
HTS-A3 SGM 30/40
Cross-beam connection:
Ball head 28.5 mm
for: Magnetic gripper
Size: 30/40
Holder system
HTS-A2 D SGM 30/40
Cross-beam connection:
Bolt with slot Ø19mm
Shape: Double block
for: Magnetic gripper
Size: 30/40
Holder system
HTS-A3 D SGM 30/40
Cross-beam connection:
Ball head 28.5 mm
Shape: Double block
for: Magnetic gripper
Size: 30/40
Manual
Design Data
| Attribute | Value |
|---|---|
| B | 30.10 mm |
| D | 29.50 mm |
| G1 | G1/8″-F |
| G2 | G1/8″-F |
| G3 | M12x1-M |
| G4 | M4-F |
| H | 70.20 mm |
| LG1 | 7 mm |
| LG2 | 6 mm |
| LG4 | 5 mm |
| Lk | 300 mm |
| X1 | 46 mm |
| Y1 | 12 mm |
