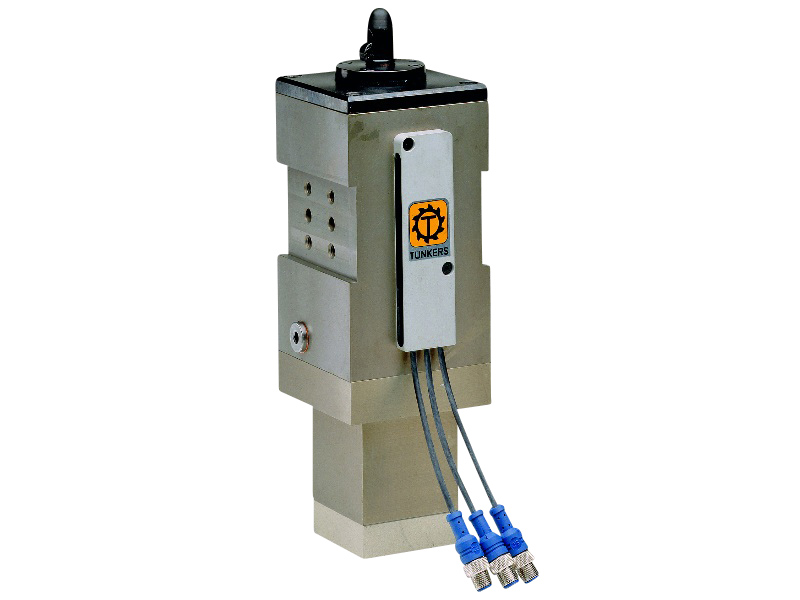

SZ 50 UZ UNDERBODY CLAMP
Clamp with retractable centring pin and integrated retracting hook for centring and clamping operations in workpiece openings. Centring pin according to requirement in the diameters from 20-40 mm, complete component release due to retractable pin, self-locking toggle-joint mechanism, retracting hook and centring pin each driven by a pneumatic cylinder. Encapsulated housing in aluminium construction with hole pattern for mounting purposes to the left and right. Option: – Inductive sensing, weld field immune for opened and closed position (T31).
SZ 50 UZ-LB for folding straps
SZ 50 UZV for high clamping positions
