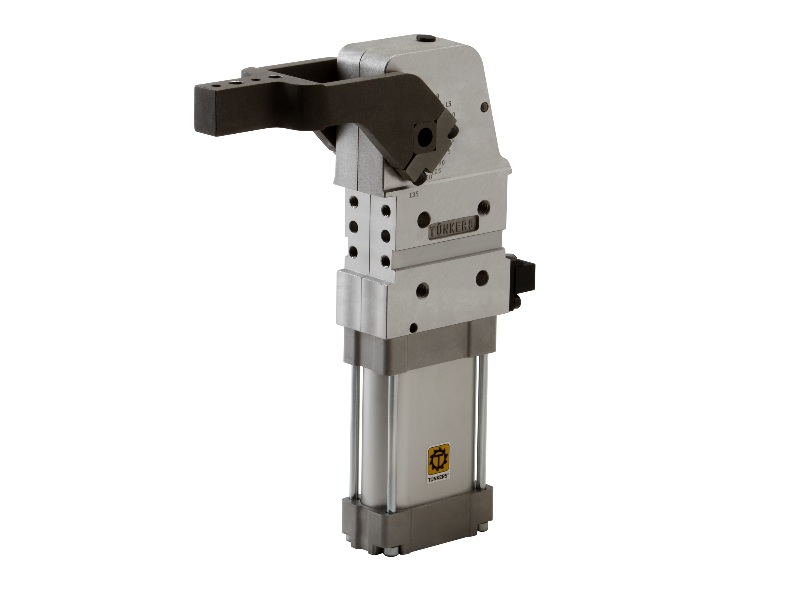

V/V2… .1 BR3 Vario Clamp
Vario clamp with toggle joint mechanism and continuously adjustable opening angle, Over-centre-lock, Enclosed aluminium housing, Oval-shaped cylinder in the sizes 50, 63, 80, Forked clamping arm, standard hole pattern for adapting contour blocks, Continuously adjustable opening angle 5°-135°, optional: Weld immune inductive sensing of closed and opened position (T12)
Data Sheet
CAD Data
Catia V5 3D V/V2 50.1 BR3 Aoo T12
Catia V5 3D V/V2 63.1 BR3 Aoo T12
CAD Accessories Data
Catia V5 3D Clamp arms 50 A10/A11/A12
Catia V5 3D Clamp arms 63 A10/A11/A12
Catia V5 3D Clamp arms 80 A10/A11/A12
Step Clamp arms 50 A10/A11/A12
Other Specs
V… clamp arm weight – load offset of clamp arm
V… .1/ K…/ VG air consumption depending on opening angle
