DBH | DUAL-BOX-LIFTER
DBH-| DUBBEL-BOX-LYFTARE
EXPERT-TÜNKERS Dual-Box-Lifter är en lågprofilerad rullbanelyft med integrerat fjädringssystem. Den lågprofilerade och övergripande kompakta designen leder till minimala utrymmeskrav och har inga störande kanter för en perfekt 360 ° robottillgänglighet. Dessutom har Dual-Box-Lifter ett integrerat energilagringssystem som drivs av två spiralfjädrar. Deras lagrade potentiella energi minskar den energi som krävs med upp till 30% per cykel.
DBH | DUAL-BOX-LIFTER

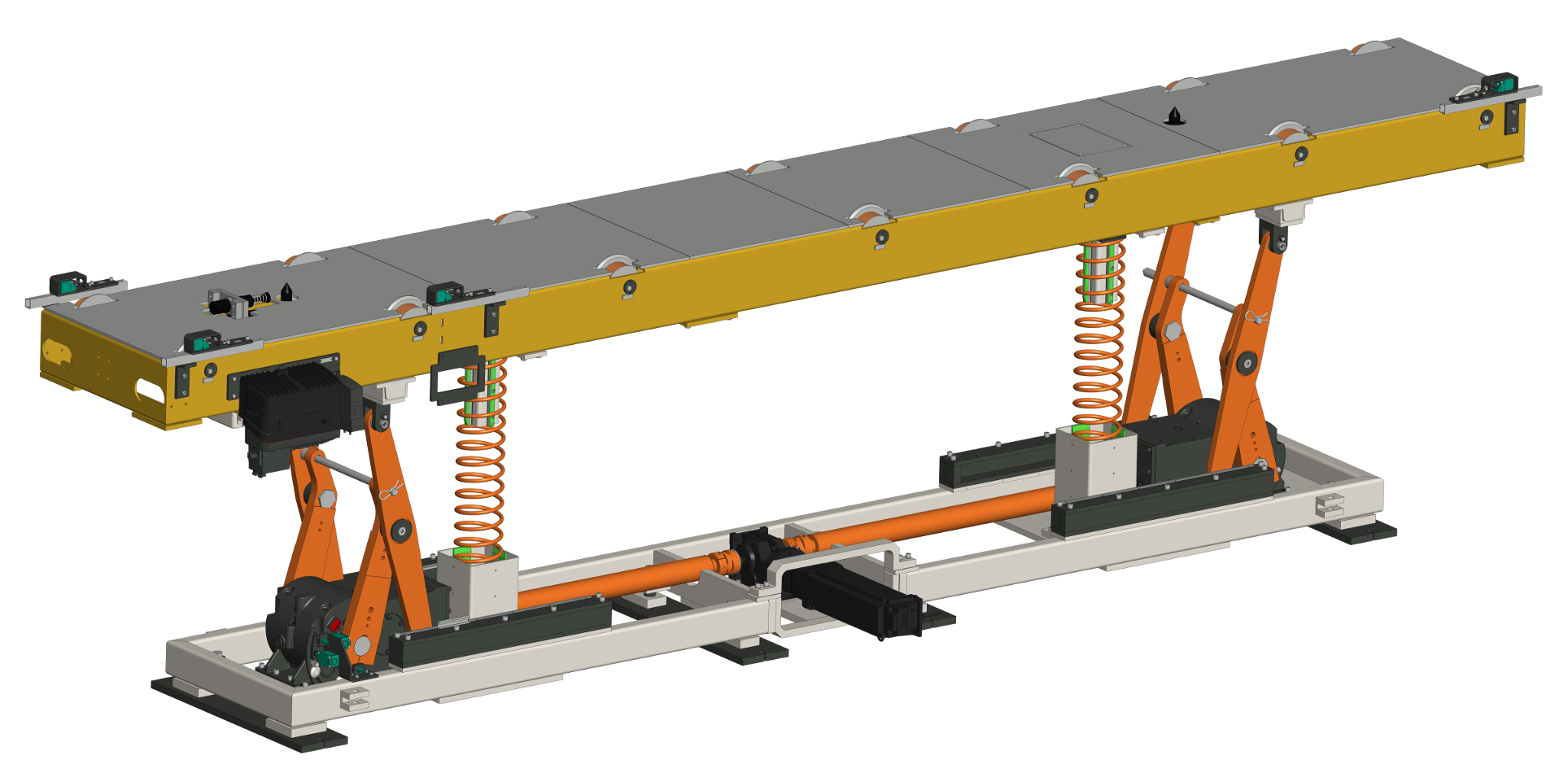

The EXPERT-TÜNKERS Dual-Box-Lifter is a low-profile rollerbed lifter with integrated spring suspension system. The low-profile and overall compact design leads to minimum space requirements and has no interfering edges for a perfect 360° robot accessibility. Additionally the Dual-Box-Lifter has an integrated energy storage system operated by two spiral springs. Their stored potential energy reduces the required energy by up to 30% per full cycle.
ADVANTAGES DUAL-BOX-LIFTER
- 30% less energy consumption by using the potential spring energy
- Minimum space requirement
- No interfering edges for robotic welding
- Smooth component transfer
- Flexible determination of the takeover position
Downloads
Technical Data
DBH | TECHNICAL SPECIFICATIONS
Variable | Max. Value |
---|---|
Customer Load – [Skid + Body] | 200 – 900 kg |
Horizontal Stroke | 4.000 – 10.000 mm |
Vertical Stroke | max. 800 mm |
Cycle Time – [Lifting-Transporting-Lowering] | min. 8 s dependent from customer loads |
